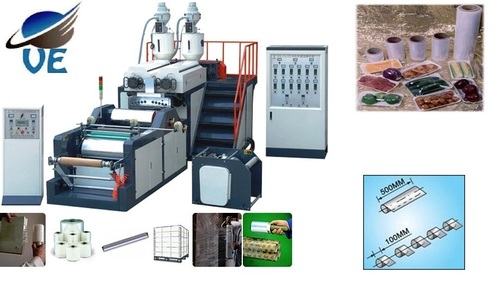

Stretch Film Machine

Stretch Film Machine
Stretch Film Machine
Product Code : 02
Brand Name : VE
Product Description

Fostered with a team of highly experienced professionals, we are offering our clients superior quality Stretch Film Machine. Available in varied technical specifications as per the specific application requirements of clients, this machine is manufactured by our adroit professionals using the best quality components and cutting-edge technology. This machine is used for making stretch films in different specifications. Our clients can avail this Stretch Film Machine from us at very nominal price.

Features:

  • Optimum performance

  • Robust construction

  • Energy efficiency

  • Longer service life

Main specifications:

  • Lay flat width:500mm

  • Thickness : 0.008mm-0.05mm, tolerance: ¼±5% ¼â€°

  • Production capacity: 30-40KG/H

  • Power supply: 380v, 50Hz 3 Phase/15 kw

  • Applicable raw material: PE

  • Machine dimension(M): 4.8x 2.2 x2.6

  • Weight: 4500 KG

Characteristics:

  • Main motor and take-up motor are controlled by inverter

  • Pneumatic cylinder system to adjust the gap of roller

  • Material of screw and barrel:38CrMoAlA

  • Hardness of heat treatment: screw HV740, barrel HV900 depth of hardening:0.4-0.7mm brittleness grade: 2 grade

  • Gear box: Surface heat quenching and tempering/auto. Oil lubric

  • Die material: steel 45#/surface treatment of flow channel: hard chrome- plating

  • Digital display temperature controller

Extruder:

  • Screw diameter:50mm x 2 set

  • Screw ratio (l/d): 30:1

  • Screw speed: 0 - 100rpm

  • Barrel cooling: cooling fan x 2 sets

  • Heating power: 11kW

  • Drive motor: 11kW x 1 set, AC inverter motor, 380V, 50Hz

T-Die:

  • Length of die:650mm

  • Die temperature control: 3 zones

  • Die heating power: 15kw

  • Material of die: 38 Cr

  • Connector and filter temperature control: 1 zone

  • Connector and filter heating power: 1.5kw

  • The way to change the screen: automatically

Mirror-like Cooling roller:

  • Length: 650mm

  • Type ¼ T type

  • Form of cooling: The water goes into the cooling roller

  • Quantity of cooling roller: 2

Winder:

  • Type: surface friction type

  • Two stations with two sets of air shaft

  • Motor to drive winder ,take-forward unit and Mirror-like Cooling Roller: 1.5kw / Inverter motor / 380v, 50Hz.

  • ADSEN Inverter,Made in China(U.S.A brand)

  • CHNT Electric

  • Temperature Controller

  • Motor

  • Die

  • Screw:38Chrome-molybdenum aluminum

  • Screw Heater:Stainless Steel Heater

  • Hard Tooth Surface Gear Box

  • Power :380V 50Hz 3Phase
