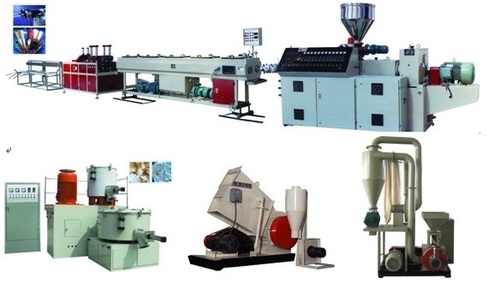

PVC Pipe Making Machine

PVC Pipe Making Machine
PVC Pipe Making Machine
Product Code : PM1
Brand Name : VE
Product Description

φ0.5-1inches PVC double pipe production line

Φ0.5-1 inches PVC double pipe extrusion line

Items

Remarks

Product specs

Φ0.5-1 inches

environment condition

Place

room

Humidity

85%, no condensation

Temperature

0-40

use condition

Electrical source

3-phase380V-10%+5% 40Hzthe voltage and HZ can be adjusted according to customer’s request,if yours is different ,price will be increased by 1% .

Installation power

60kw

Real power

40kw

Cooling circular water

20   pressure≥0.3Mpa

Capacity

80-120kg/h

Length

18 meters

main technology performance

Resin

PVC powder





1.SJSZ51*22 twin-screw extruder               1set

Screw diameter

51mm

Screw L/D

22:1

Screw quantity

2pcs

Screw hardness

HV> 740

Screw material

38CrMoAIA, nitriding processing

Barrel hardness

HV> 940

Barrel material

38CrMoAIA, nitriding processing

Barrel heater

Cast-aluminum heating ring with air flue

Barrel heating zone

4zones

Barrel heating power

12kw

Barrel cooling zone

3zones, air blower cooling

Barrel cooling power

180w

Die head heating zone

3zones

Die head cooling power

9kw

Motor

22kw

Spring feeding machine

40kg

Production capacity (Max)

120kg/hr

Decelerator, gear box

Basic structure

Horizontal type installment

Cooling way

Outside circular cooling system

Import thrust bearing

high torque output

Gear material

20CrMnTi cementite hard gear surface, grinding gear craft processing

gear box characteristic

special decelerating device which has the long service life, low noise and low calorific



2. mould

Characteristic



Pressure; flux even, product smooth, high density, no flowing trace, wear-resistance, and anticorrosive, high intensity, and precision high stability, long service life

Mould material

 by smithing, quench tempering etc. craft processing

Mould spec

Ф1/2,3/4,1 inches

Remarks: Ф1/2,3/4,1 inches can be extruded with double pipes

2. auxiliary machines

2.1 SZD-4000 vacuum cooling water tank      1set

Vacuum pump power

2*1.5kw

Water pump power

2*1.5kw

vacuum process pump:

4 azimuth spray, ABS nozzle, 3D adjusting

Tank material

Stainless steel, Thickness: 3mm

Tank body diameter

320mm

Water tank Lengths

4000mm

2.2 GQY-800 hauling machine

Hauling power

1.1kw*2

Clamping way

pneumatic clamping

Speed adjusting

inverter

Slab rubber model

200type

Effective clamping length

800mm

2.3 SQG-160 cutter

Cutting motor power

1.1kw*2

With accumulating chipping device

automatic fixed-length cutting

2.4 SFZ-4000 Stacker

Material

Stainless steel

Length

4000mm

Discharging way

Pneumatic operation

2.5 electrical appliance part

Low voltage electrical appliance

Siemens

Inverter

ABB/ Siemens

Temperature control meter

Omron, Japan

3. SHR-200/500 Mixer

The main composing

pot bodypot coverspread to move a partsbaseanticipatesmotorelectrical box

Pot body material

stainless steelinside surface extremely smooth and strong and toughit has the characters of bearing to whetbearing corrosiongluing to anticipate not easily

Pot cover material

Cast-Aluminum

Total capacity

200/500L

Mix blade quantity

3pcs

Mix blade material

3Cr13Ni

Rotary speed of mix blade

480/970r/min

Rotary speed of cooling mixer

130r/min

Heating way

Friction heating

Cooling way

Circular water cooling

Heating characteristic

Stable and uniform

Temperature control way

Automatic control temperature

Double speed motor power

30/42kw

Cooling motor power

5.5kw

Unloader material

Cast-aluminum

Discharging way

Pneumatic
