Film Blowing Machine

Film Blowing Machine
Film Blowing Machine
Product Code : 26
Brand Name : VE
Product Description

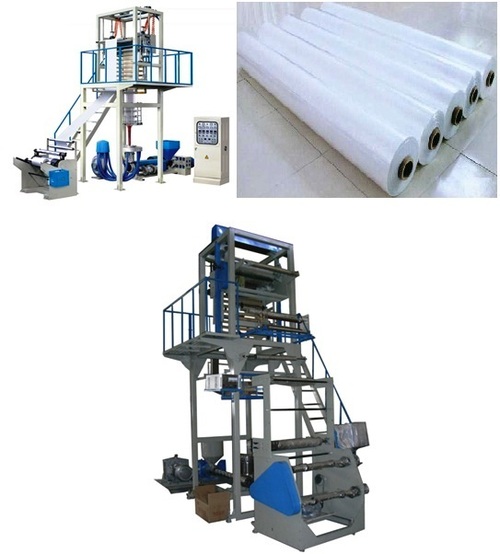

HDPE LDPE film blowing machine

High and low voltage film blowing machine Usage:

Used for blowing low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE), and other plastic composite film, used in various types of vest bag semi-finished products made of tube materials.

Performance characteristics:

1. The body is channel steel frame, the host is equipped with a low center of gear reducer, has the stable transmission, large torque, the advantage of easy maintenance.

2. The barrel and screw adopt 38 crmoaia alloy steel, after nitriding process, high, good corrosion resistance, durable.

3. The machine is in the process of heating, but according to the technological requirements, automatic control, adjust the temperature, the operation is simple.

4. The traction device is stepless speed regulation, wide speed range, stable and reliable.

5. Coiling optional profile control membrane friction double winding, winding, in volume and convenient.

Main technical parameters:

Model

VE-50

VE-55

VE-60

VE-65

Screw diameter

50

55

60

65

Screw diameter ratio

28:1

28:1

28:1

28:1

Screw rotation speed

0-100 r/min

0-100 r/min

0-100 r/min

0-100 r/min

Ultimate capacity

20 kg/h

25 kg/h

30 kg/h

40-50 kg/h

Host power

7.5kw

11kw

15kw

18.5kw

Barrel heating power

11kw

13kw

16kw

20kw

Die heating power

2.5kw

3kw

4kw

4.5kw

Pulling up speed

10-50m/min

10-50 m/min

10-50 m/min

10-50 m/min

Max.folding

600mm

800mm

1000mm

1200mm

Film thickness

0.008-0.05mm

0.008-0.05mm

0.008-0.05mm

0.008-0.05mm

Dimensions(LxWxH)

4000—1800—3000mm

4200—1900—3200mm

5000—2300—3800mm

5800—3000—5500mm
