Bubble Film Making Machine

Bubble Film Making Machine
Bubble Film Making Machine
Product Code : 16
Brand Name : VE
Product Description

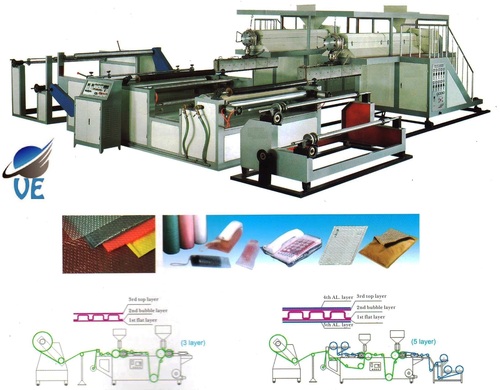

Bubble Film Making Machine

We are the prominent manufacturer, exporter and supplier of Bubble Film Making Machine. Offered machine is designed and manufactured by our professionals using supreme class components and latest technology as per the set industry norms. This machine is available in various technical specifications and can be custom designed as per the specifications provided by the clients. This Bubble Film Making Machine is used for making 5 & 4 layers laminating bubble film with pure aluminum foil and aluminum.

Features:

  • Superior performance

  • Low maintenance

  • Easy operation

  • Resistant against corrosion

Specifications:

  • This model can also used for 5 & 4 layers laminating bubble film with pure aluminum foil and aluminum and EPE foam, and 3 and 2 layers bubble film.

  • Suitable for a wide spectrum of materials, including LDPE, LLDPE and recycle PE.

  • Can produce films with various bubble sizes from 6 -32by changing roller.

  • Variable speed drive can greatly reduce energy consumption.

(Two extruders, Two to Five layers film, with out layer is the aluminized film)

 Model

VE-1000

VE-1200

VE-1500

VE-2000

 Main & min Screw Diameter

 60 mm / 50 mm

 65 mm / 55 mm

 85 mm / 65 mm

 955 mm / 70 mm

 L/D

28:1

28:1

28:1

28:1

 Film Width

1000 mm

1200 mm

1500 mm

2000 mm

 Output

120 Kg/H

160 Kg/H

180 Kg/H

250 Kg/H

 Speed

1100m/hour

1100m/hour

1100m/hour

1100m/hour

 Total Power

75 Kw

95 Kw

120 Kw

165 Kw

 Machine Weight

5 Ton

6 Ton

7 Ton

9 Ton
